Especificaciones / funciones principales

N º de Modelo.: YV-PVA-01 hits: 54

China Pneumatic Valve Actuator Manufacturer offers 14 types Pneumatic Valve Actuators, spring actuator, double acting torque, 2.5-8 Bar, ISO 5211 Dimesions.

Dimesiones ISO 5211 2.5-8 Bar Actuatores Neumáticos de Válvulas

Solicitar

Detalles


                                          Diagrama análisis de actuator para válvulas neumáticas


Pneumatic Valve Actuator Descripción
:
14 Tipos ( DA 32- DA 270 ).
se ofrece una amplia gama de actuatores nuemáticos de piñón y cremallera
Los puertos son de estándard NAMUR para una secilla solenoide conneción de válvulas.
Dimensiones según ISO 5211 para todos los tamaños.
Todas las superficies internas y externass están anodizadas para la resistencia contra corrosión.
Los actuatores tiene una gama de regulación de -4° a +4°.
Los cojinetes del eje isola el actuator piñon de la caja y soporta el eja hasta muchos ciclos.
El actuator se puede elevado en diferentes estilos de válvulas de quarter-turn incluyendo bolas, mariposa, macho y apagadores.

Operaciones de válvulas neumáticas:
Presión de trabajo: 2.5 Bar – 8 Bar.
Temperatura de trabajo:
Gama estándard: -20℃ - +80℃.
Gama de baja temperatura : -40℃ - +80℃(HNBR).
Gama de alta temperatura: -20℃ - +150℃(vition).
Fábrica lubricada para una vida bajo trabajo normal.
Operating media – Dry or lubricated air, non-corrosive and inert gas or light hydraulic oil.
Angle of rotation: 0° to -90°± 4°.Se opera mediante aire seco o lubricado, non-corrosivo y inerte gas o petróleo ligeramente  hidráulico.

MOD. ISO5211 A B C D E F G H I J K L M N O
ISO7/1
P Q R S
50 FO3-FO5 138 30 41 69.5 20 30 80 26.5 36 50 11 M6*9 M5*7.5 12 1/8’’ 12 16 M5*7 11
63 FO5-FO7 162 35.5 45 80.5 20 30 80 27.5 50 70 14 M8*12 M6*8 16 1/8’’ 12 16 M5*7 11
75 FO5-FO7 208 42 52.5 97 20 30 80 35 50 70 17 M8*12 M6*8 19 1/8’’ 12 16 M5*7 17
88 FO5-FO7 245 49 60 115.5 20 30 80 46 50 70 17 M8*12 M6*8 19 1/8’’ 12 16 M5*7 17
100 FO7-FO10 266 55 68 121.5 20 30 80 50 70 102 17 M10*14 M8*12 20.5 1/4’’ 12 16 M5*7 17
115 FO7-FO10 310 64 73 141.5 30 30 130 50 70 102 22 M10*14 M8*12 24 1/4’’ 12 16 M5*7 17
125 FO7-FO10 340 68 80 153.5 30 30 130 61 70 102 22 M10*14 M10*15 24 1/4’’ 12 16 M5*7 22
145 FO10-FO12 401 78.5 90 179 30 30 130 73 102 125 27 M12*18 M10*15 29 1/4’’ 12 16 M5*7 22
160 FO10-FO12 430 86.5 100 192 30 30 130 83.5 102 125 27 M12*18 M16*25 29 1/4’’ 12 16 M5*7 27
180 F14 482 102 102 222 30 30 130 60 140 --- 36 --- M16*25 39 1/4’’ 12 16 M5*7 27
200 F14 532 112 112 244 30 30 130 63 140 --- 36 --- M20*30 39 1/4’’ 12 16 M5*7 30
240 F16 662 133 133 288 30 30 130 85 165 --- 46 --- M20*30 49 3/8’’ 20 22.5 M6*8 30
270 F16 730 153 153 323 30 30 130 106 165 --- 46 --- --- 49 1/2’’ 20 22.5 M6*8 30

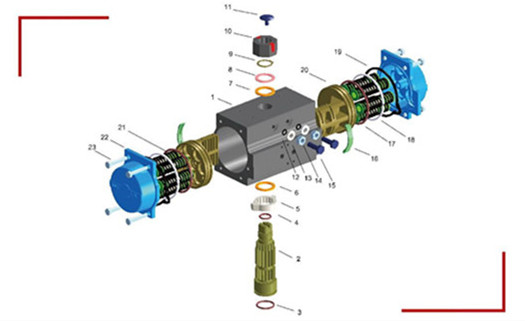

Lista de piezas de actuatores de válvulas neumáticas

Item descripción material coating Cantidad(DR) cantidad(SR)
1 body extruded aluminium anodic oxidation 1 1
2 pinion WCB nickel pLated 1 1
3  o-ring NBR70 ----- 1 1
6  pinion bearing POM ----- 1 1
5 position cam SS304 ----- 1 1
4 upper o ring NBR70 ----- 1 1
7  pinion bearing POM ----- 1 1
8  pinion ring SS304 ----- 1 1
9 jump ring SS304 ----- 1 1
10 indicator Nylon ----- 1 1
11 indicator screw Nylon+SS STEEL ----- 1 1
18 guide ring POM ----- 1 1
17 piston 0-ring NBR70 ----- 1 1
16 piston thrust block POM ----- 2 2
20 piston forget aluminium ----- 2 2
19 end cap  o-ring NBR70 ----- 2 2
22 end cap forget aluminum power painting 2 2
23 end cap screw SS304 ----- 2 2
15 regulation screw SS304 ---- 2 2
14 nut SS304 ----- 2 2
813 washer SS304 ----- 8 8
12 o ring NBR70 ----- 2 2
21 spring spring steel phosphating N/A Max.12

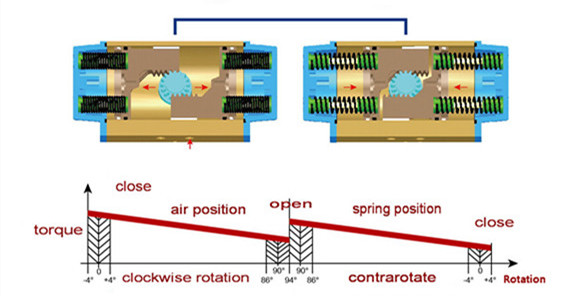

Spring Actuator

Spring actuator Table Summary
Model Group Spring Torque
(Nm)
Air Pressure(bar)
3 4 5 5.5 6 7 8
Pneumatic Torque(Nm)
90° 90° 90° 90° 90° 90° 90° 90°
SR50 3/3 4 5.8 5.9 4.1 9.3 7.4

12.6 10.8 14.2 12.4
4/4 5.4 7.8     7.9 5.5 11.2 8.8 12.9 10.5 14.6 12.1 17.9 15.5
5/5 6.7 9.7         9.9 6.9 11.5 8.5 13.2 10.2 16.5 13.5 19.8 16.8
6/6 8.1 11.7             10.2 6.6 11.9 8.2 15.2 11.6 18.5 14.9
SR63 3/3 7 10.1 10.9 7.5 16.8 13.3 22.7 19.2 25.6 22.1
4/4 9 13.5     14.6 10 20.4 15.8 23.4 18.7 26.3 21.7 32.2 27.5
5/5 11.1 16.9         18.2 12.4 21.1 15.4 24.1 18.3 29.9 24.2 35.8 30
6/6 13.3 20.2             18.9 12 21.9 14.9 27.7 20.8 33.6 26.7
SR75 3/3 13.2 20.8 21.6 14.1 33.3 25.8 44.9 37.4 50.7 43.2
4/4 17.7 27.7     28.8 18.8 40.5 30.5 46.3 36.3 52.1 42.1 63.7 53.7
5/5 22.1 34.6         36.1 23.6 41.9 29.4 47.7 35.2 59.3 46.8 71 58.5
6/6 26.5 41.5             37.5 22.4 43.3 28.3 54.9 39.9 66.5 51.5
SR88 3/3 22 34.7 32.9 20.3 51.2 38.6 69.5 56.9 78.7 66
4/4 29.3 46.2     43.9 27 62.2 45.3 71.3 54.5 80.5 63.6 98.8 81.9
5/5 36.7 57.8         54.8 33.8 63 42.9 73.1 52.1 91.5 70.4 109.8 88.7
6/6 44 69.3             56.7 31.4 65.8 40.5 84.1 58.8 102.4 77.1

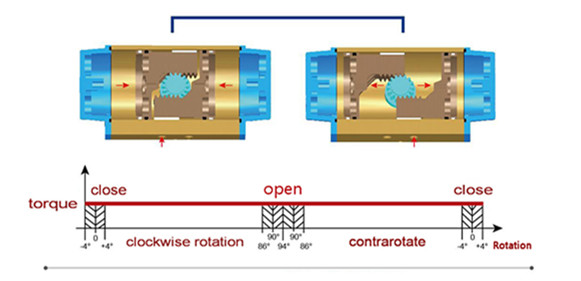

Double Acting Torque Table Summary

Double Acting Torque Table Summary
Double Acting Torque
型号 Air Pressure(Bar)
2.5 3 4 5 5.5 6 7 8
Torque Values(N.M)
DA32 3.5 4.2 6 7.5 8 9 10 11.5
DA50 8.3 10 13.3 16.6 18.3 19.9 23.3 26.6
DA63 14.7 17.6 23.5 29.3 32 35.2 41 46.9
DA75 29 35 46.5 58.2 64 70 82 93
DA88 45.8 54.9 73.2 91.5 101 110 128 146
DA100 66 79.8 106 133 146 160 186 213
DA115 107 129 172 215 236 258 301 344
DA125 138 166 222 277 305 332 388 443
DA145 217 261 348 435 478 522 609 696
DA160 284 340 454 567 324 681 794 908
DA180 383 459 613 766 842 919 1072 1225
DA200 532 638 851 1064 1170 1276 1489 1702
DA240 1160 1392.5 1857 2321 2553 2785 3249 3713
DA270 1132 1958 2611 3264 3590 3916 4569 5222
